Konfigurasi Routing EIGRP
November 29, 2018
Add Comment
Hai guys pada postingan kali ini saya akan mencoba berbagi tentang cara merouting menggunakan protokol routing EIGRP. Tanpa lama - lama langsung saja ke topologi.
Pengaturan port di setiap router

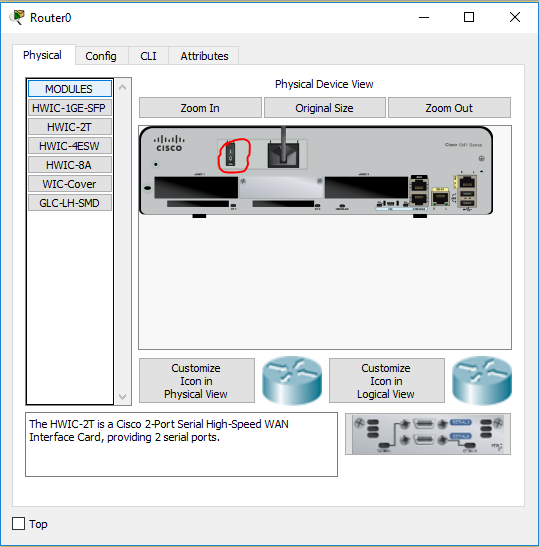

Klik R1 lalu tambahkan port (HWIC-2T) untuk kabel serial.

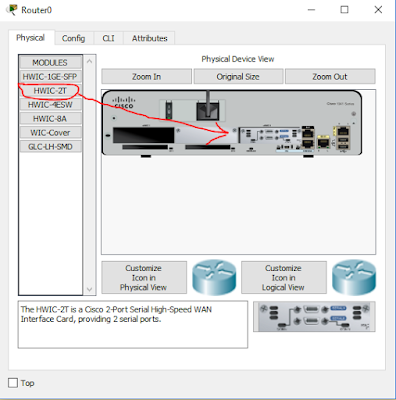

Hingga menjadi seperti ini.
Lakukan langkah tersebut pada router berikutnya, lalu hubungkan kabel Serial DCE dari R1 ke R2.
Pengalamtan IP
R1
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ho R1
R1(config)#int g0/0
R1(config-if)#ip add 192.168.1.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R1(config-if)#exR1(config)#int se0/0/0
R1(config-if)#ip add 10.1.0.1 255.255.255.252
R1(config-if)#clock rate 128000
R1(config-if)#no shut
%LINK-5-CHANGED: Interface Serial0/0/0, changed state to down
R1(config-if)#ex
R1(config)#
R2
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ho R2
R2(config)#int g0/0
R2(config-if)#ip add 172.25.25.1 255.255.255.240
R2(config-if)#no shut
R2(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R2(config-if)#ex
R2(config)#int se0/0/0
R2(config-if)#ip add 10.1.0.2 255.255.255.252
R2(config-if)#no shut
R2(config-if)#
%LINK-5-CHANGED: Interface Serial0/0/0, changed state to up
R2(config-if)#ex
R2(config)#
Berikan alamat ip di PC0 dan PC1.
Routing EIGRP
R1
R1(config)#router eigrp 7
R1(config-router)#network 192.168.1.0 0.0.0.255
R1(config-router)#network 10.1.0.0 0.0.0.3
R1(config-router)#ex
R1(config)#
R2
R2(config)#router eigrp 7
R2(config-router)#network 172.25.25.0 0.0.0.15
R2(config-router)#network 10.1.0.0 0.0.0.3
R2(config-router)#
%DUAL-5-NBRCHANGE: IP-EIGRP 7: Neighbor 10.1.0.1 (Serial0/0/0) is up: new adjacency
R2(config-router)#ex
R2(config)#
Setelah selesai coba kirim pesan dari PC0 ke PC1. Pesan pertama pasti failed, dan setelahnya Succesful.
Klik R1 lalu tambahkan port (HWIC-2T) untuk kabel serial.
Pengalamtan IP
R1
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ho R1
R1(config)#int g0/0
R1(config-if)#ip add 192.168.1.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R1(config-if)#exR1(config)#int se0/0/0
R1(config-if)#ip add 10.1.0.1 255.255.255.252
R1(config-if)#clock rate 128000
R1(config-if)#no shut
%LINK-5-CHANGED: Interface Serial0/0/0, changed state to down
R1(config-if)#ex
R1(config)#
R2
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ho R2
R2(config)#int g0/0
R2(config-if)#ip add 172.25.25.1 255.255.255.240
R2(config-if)#no shut
R2(config-if)#
%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
R2(config-if)#ex
R2(config)#int se0/0/0
R2(config-if)#ip add 10.1.0.2 255.255.255.252
R2(config-if)#no shut
R2(config-if)#
%LINK-5-CHANGED: Interface Serial0/0/0, changed state to up
R2(config-if)#ex
R2(config)#
Berikan alamat ip di PC0 dan PC1.
R1
R1(config)#router eigrp 7
R1(config-router)#network 192.168.1.0 0.0.0.255
R1(config-router)#network 10.1.0.0 0.0.0.3
R1(config-router)#ex
R1(config)#
R2
R2(config)#router eigrp 7
R2(config-router)#network 172.25.25.0 0.0.0.15
R2(config-router)#network 10.1.0.0 0.0.0.3
R2(config-router)#
%DUAL-5-NBRCHANGE: IP-EIGRP 7: Neighbor 10.1.0.1 (Serial0/0/0) is up: new adjacency
R2(config-router)#ex
R2(config)#
Setelah selesai coba kirim pesan dari PC0 ke PC1. Pesan pertama pasti failed, dan setelahnya Succesful.
Bila ada pertanyaan comment dibawah, Jangan lupa share bila bermanfaat ^^.
Salam TKJ
